CEMENT CONCRETE TESTING INSTRUMENTS
We offer an extensive line of concrete testing equipment that spans all phases of concrete testing for compliance, strength, and consistency. Our concrete testing equipment for field and laboratory use adhere to ASTM, AASHTO, and other internationally applicable standards.
Features:

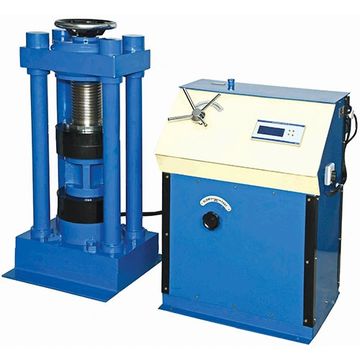

- 3 pressure gauges 0-200 tones, 0-100 tones, and 0-50 tones capacity
- Comes with Flexure Test Attachment
- Fitted with a hand wheel control which enables the rate of application of load to be varied
- Equipped with facilities for hand operated pumping in case of power failure
- Electrical Relays are installed in the electrical pumping unit, so that in case of breakdown of power supply the motor will not restart unless the starting switch is operated.
The equipment (IS : 3085-1965) comprises a control panel and three permeability cells. Each cell consists of:
- A metal cylinder with a ledge at the bottom and flanged at the top, one removable cover plate and a funnel
- An independent control circuits attached to the panel, that consist of a water reservoir, graduated gauge, glass tube, air inlet valve, pressure regulator, pressure gauge, a drain crook and a shut-off valve
- A common air inlet connecting all three unit to the air compressor

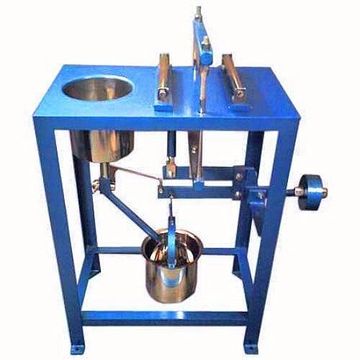

Ideal for making tensile strength tests on cement briquettes up to 1200 lbs.
Features:
- Double scale 100lbs x 1lb and 50kg x 0.5kg.
- Supplied complete with one standard briquette mould, 10kgs of lead shots
- Weight hanger and a set of weights comprising 4ozs, 8ozs, 12ozs and 1lb. 4ozs directly to weight 100lbs, 200lbs, 300lbs and 500lbs
- with a second set of weights comprising 125gms, 500gms and 750gms directly to weight 50 kg, 200 kg and 300 kg
It is for the determination of the aggregate impact value and has been designed in accordance with IS-2386 (Part IV). The study construction consists of a base and support columns to form a rigid frame work around the quick release trigger mechanism to ensure an effective free fall of the hammer during test.
This is intended for non-destructive testing of the quality of concrete in finished structures. In testing, the rebound number is measured, which is dependent on the strength of the mortar (concrete with coarse particles) close to the surface. Since the strength of the mortar as a rule determines the strength of the concrete, the rebound number gives an indication for the strength of the concrete. The results obtained are ±15% of the actual compressive strength.
Meets the requirement of IS-516-Steel cube Mould 2.78 (7.06 cm) for vibrating machine complete with base plate.
Cast Iron Cube Moulds complete with base plate. This unit comes in the following sizes:
- 5cm x 5cm x 5cm
- 10cm x 10cm x 10cm
- 15cm x 15cm x 15cm
- 20cm x 20cm x 20cm
- The counter balance drum is easy to tilt with 1½ to 2 cu .ft. mix.
- The total drum volume is, however, 3 cu. ft. Mounted on a sturdy rubber stand.
- The drum is mounted for end discharge and equipped with 1/2 h. p. electric motor, suitable for operation on 220 volts. A. C. single phase.
This unit is used for making cement concrete prisms or bars of square cross section for flexural strength test. Faces are machined flat to within ±0.02mm and inside dimensions to ±0.2 mm made of Cast Iron or Steel, supplied complete with base plate. A tamping bar (5 mm x 5 mm x 400 mm) is provided with it. This unit is available in the following sizes:
- 40 mm x 40 mm x 160 mm
- 100 mm x 100 mm x 500 mm
- 150 mm x 150 mm x 700 mm
- 150 mm x 150 mm x 750 mm
This unit is used to cast cylindrical cement concrete specimens for compressive strength tests. These moulds are made of cast Iron. They can be easily split into two parts. The internal diameter is finished to ±0.2 mm and height within ±1 mm. Supplied complete with a base plate machined flat within ±0.02 mm. It is available in the following sizes:
- 100 mm diameter x 200 mm high
- 150 mm diameter x 300 mm high
- 300 mm diameter x 600 mm high
Comprising a split cylinder fitted with two indicator stems. The mould is supplied complete with two glass plates and a weight 100 g ±10 g. Three moulds required for each test.
Confirming to IS:2386, this unit is used for determining the flakiness index of aggregate. It consists of a panel having accurately cut slots of different standard lengths and width.
(IS:2386) Used for determining the elongation index of coarse aggregate. It consists of a steel plate on which 8 steel pins are vertically mounted with specified distance in between. This assembly is mounted on a hardwood base.
This unit (IS-4031) is used for measuring changes in the length by a dial gauge graduated to 0.01 mm. The gauge is mounted rigidly in a measuring frame and has a recessed and which can be located upon a 6.5 mm diameter ball or other reference point in the specimen. Complete with a stainless steel standardization bar with 6.5 diameter balls mounted in the ends.
Confirming to ISS-7320, this apparatus determines the workability of concrete where nominal size of aggregate does not exceed 38 mm. The apparatus comprises of a slump cone with foot pieces fitted on a base with wing bolts. A swivel carrying handle fitted with the base also serves as a datum for measuring the slump, when moved into vertical position perpendicular to the base. A graduated tamping rod is used both for compacting the specimen as well as measuring the slump of concrete.
The Compacting Factor Apparatus is used to determine the compaction factor of concrete with low, medium and high workability. Comprising two conical hoppers having a hinged trap door attached to the lower end of each hopper, allowing the concrete sample to flow freely into the cylindrical mould. The hoppers and the mould are mounted onto a rigid steel frame and are easily removable for cleaning.
Consists of a vibrator table resting upon elastic supports, metal post, sheet metal cone open at both ends, and a standard iron rod. The table is equipped with an electrically operated vibrometer mounted under it by an electric motor, both double ended shaft, working on 220 volts, single phase A.C. supply.

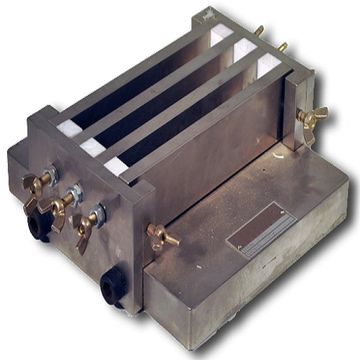

It is made of mild steel or brass. Faces machined flat. Complete with base plate and stainless steel smooth reference points. Size 25mm x 25mm x 250mm, effective gauge length (Gang of one / two/ three).
HAND OPERATED: The Flow Table consists of a brass table top 250 ± 2.5 mm diameter mounted on a rigid stand. The table top is re-enforced with equally disposed ribs and allowed to drop through 12 mm by a ground and hardened cam. Complete with mould 100 mm base dia. 70 mm top diameter, 50 mm high.
MOTORIZED: Supplied complete with an electric motor suitable for operation on 230 volts, 50 cycles, single phase A.C. supply

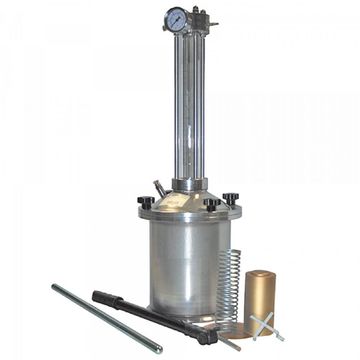

It is high pressure autoclave designed especially for conducting accelerated soundness tests on Cement or the autoclave expansion tests. It is mounted in a sturdy supporting frame, and enclosed in a heatinsulated / metal housing which is attractively finished in hammertone paint. The top has a pressure regulator safety valve and pressure gauge. The unit attached to the side of the housing has power switches and pilot lights for controlling the electric heating unit.
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)

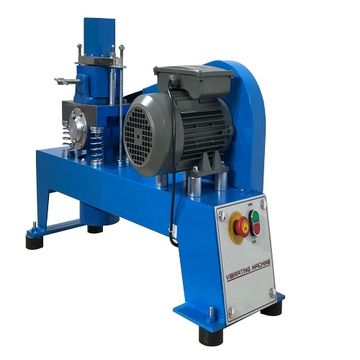

Vibrator is mounted over coiled springs. Vibrations are by means of a revolving shaft with an eccentric. Frequency 12000±400 vibration per minute. Centre of gravity of the vibrator, including the cube and mould is either at the center of the eccentric shaft or within 25 mm below it. Easy assembling and dismantling of cube mould. Provided with belt guard and a time switch. Suitable for operation in 230 volts, 50 cycles, single phase A.C. Supply.
This apparatus is used for determination of the strain and deformation characteristics of cement concrete cylindrical specimens of 150 mm diameter x 300 mm long. It consists of two frames for clamping to the specimen by means of five tightening screws with a hardened and tapered end. Two spacers hold the two frames in position. A pivot rod is adjustable. A dial gauge, fixed to a bracket to the top frame is used for taking deformation measurement.
This is for the determination of lateral extension of 150 mm diameter x 300 mm high cement concrete cylinders while testing them under compression. The extensometer consists of two movable frames pivoted at one end. A dial gauge measure, the lateral extension, and a removable spacer strip is for the initial setting of the dial gauge. Mounting of extensometer on the specimen is done with the help of screws. Supplied complete with a dial gauge 0.01mm. x 12mm.
The new multi-position strain gauge is mechanical gauge designed and developed for maximum accuracy and versatility in making precise measurement in the field or in the laboratory. It features a light aluminum alloy frame and can be used for five different master setting of 5, 10, 15, 20, and 25cm. Readings can be made on a dial gauge having sensivity0.01 mm.
This device is used to determine resistance to wear of coarse aggregated by abrasion. A rolled steel drum totally closed, the removable dust-tight cover is connected to stub shaft and mounted on steel frame. The drum is rotated by 1 H.P. electric motor. A heavy duty speed reducer coverts the motor speed to drum speed of 30 to 33 R.P.M. Inside the drum is provided a steel shelf which can be easily replaced when worm out. A Revolution Counter fitted to the rotating shaft.
Consists of a metal box mounted on legs and fitted with a series of chutes of equal width which discharge the material alternatively in opposite directions into separate pans. The chutes of the riffle are steep enough to allow rapid flowing of the material.

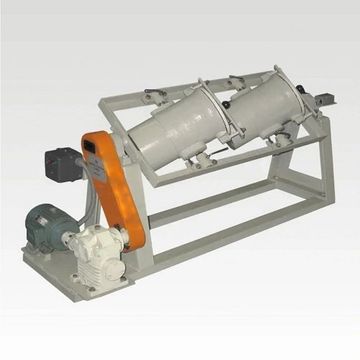

For determination of resistance to wear by attrition. Two iron cylinders 77/8" diameter 133/8" long with dust and water-tight covers, mounted on a shaft with their axis inclined at 30 deg. to the axis of rotation of the shaft. Rotation speed is 30-33 R.P.M. Driven by 1 H.P. three phase 440 volts, A.C. Electric motor.
The crusher has manganese steel jaws. The opening of the jaws is adjustable from 20 mm to 6 mm. The capacity is 200 KGs. per hour. The crusher is made of cast steel. The jaws have forward and downward strokes with sufficient rocking action to throw crushed material down to the jaws. A hopper is provided at the top for pouring material. The crusher is supplied complete with 3 H.P. electric motor, triple V-belt pully drive and mounting frame.
The Laboratory Pulveriser is a disc type grinder designed for grinding virtually any material to produce a fine mesh sample in one operation. It is a self contained grinder furnished with rotating disc having a planetary movement in vertical plane. This feature gives added life to the waring parts and delivers a product of uniform fineness. It will reduce a 1 pound sample of quartz type material to 100 mesh or above in 1 minute. Maximum feed size 6 mm.
Vibrator internal, laboratory type. Use in Vibrating concrete test cylinders and beams. It is widely used in making concrete products in experimental work and in small scale construction projects. The vibrator is electrically driven, fitted with 350 mm long x 25 mm diameter vibrating pin having a bullet type nose. Approx. three ft. long flexible shaft. Vibrating speed is 10000 per minute.
The abrasion testing machine consists of a replaceable grinding path fitted on a disc rotating about its vertical axis which are enclosed by a circular tray. A bracket holds the specimen. The loading is by a counter balanced lever. Supplied complete with automatic pre-set revolution counter and one 7.5 kg. weight but without abrasive power and thickness gauge. Suitable for operation on 415 volts, 50 cycles, 3 phase A.C. supply. With dial gauge 0.01 x 25 mm.
Proper compaction of cement concrete while casting specimens for compression testing is desirable to achieve a better and more consistent mixture.
The table to is 500 mm x 500 mm and has stops along its edges to prevent moulds from sliding off the table during operation. The maximum load capacity is 140 kg. The variable pitch pully arrangement permits the frequency to be varied between 600 cycles/sec. and 430 cycles/sec. Suitable for operation 415 volts,3 phase. 50 Hz. A.C. supply.

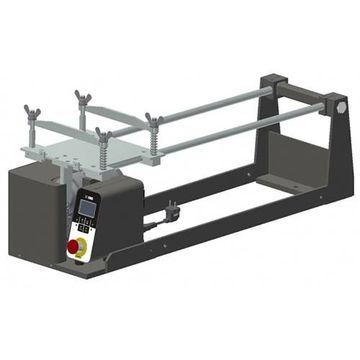

This device is used for determination of transverse strength of f three standard square sectioned specimens of portland and pozzolana cement mortar.
It consists of a mold table, which is seated on a rotating cam driven at 60rpm. The rectangular mold table is connected by two support arms to the spindle. The three-gang mold on the top is clamped rigidly to the mold table using the supplied hopper. The hopper supports the mold while freefall of the table is stopped by the cam.
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,cg:true)

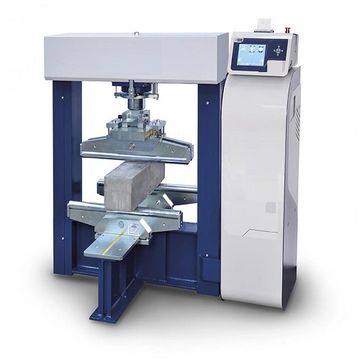

This device is used for carrying out transverse strength tests on 40 mm x 40 mm x 160 mm mortar specimens. The equipment consists of a motorized load frame, with a constant rate of strain to supply load on the specimen at the rate of 4 to 6 kg/minute. For measuring the load, a 4 KN proving ring is attached to the cross head of the load frame.
For concrete containing nominal maximum size of aggregate of 38 mm. The apparatus consists of a measuring bowl of 0.005 cm capacity. A flanged conical cover assembly fits over the bowl and can be sealed with clamps keeping a rubber gasket in between. A water inlet valve with a spray tube and an air bleed valve are fitted on the conical cover assembly. A pressure gauge is mounted on the top of the stand pipe. A hand pump is provided for the application of pressure. Learn More

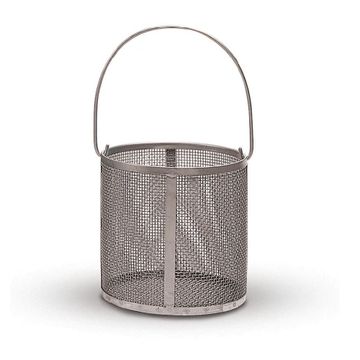

For the determination of specific gravity and water absorption of aggregate. It is made of G.I. wire-mesh approx. 20 cm diameter x 20 cm high. Supplied with handle.
FEATURES:
- A drum of welded steel 300 mm diameter x 340 mm long supported on heavy duty ball berings.
- An air tight cover to close the 100 mm wide opening of the drum.
- A reduction gear driven by a motor which rotates the mill at28-30 R.P.M.
- Abrasive charge consisting of 12 steel balls 19 mm dia.(v)An revolution counter.
- Suitable for operation on 220 volts, single phase, 50 Hz. power supply.
The aggregate crushing value (ACV) provides relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Two versions available: 150 (standard) and 75 mm dia. The apparatus comprehend cylinder, plunger, base plate, tamping rod and measure. Cylinder, plunger and base plate are made from special alloy steel, hardened to 650 HV (57,8 HRC), and protected against corrosion.
For clay roofing tiles and Cement Concrete Flooring Tiles. This is a double lever loading machine and the load is applied by flow of lead shots which automatically stops when the sample breaks. The load is applied at the rate of 450 to 550 N/minute or 200 kg/minute as per relevant standards test requirement. The accuracy of load indication is within± 2%. The sample is mounted between rollers 40mm diameter or 12 mm diameter as per relevant standards test requirement. Capacity 200 kg.
